Comprehensive Guide to Manlift Slew Drives
Comprehensive Guide to Manlift Slew Drives

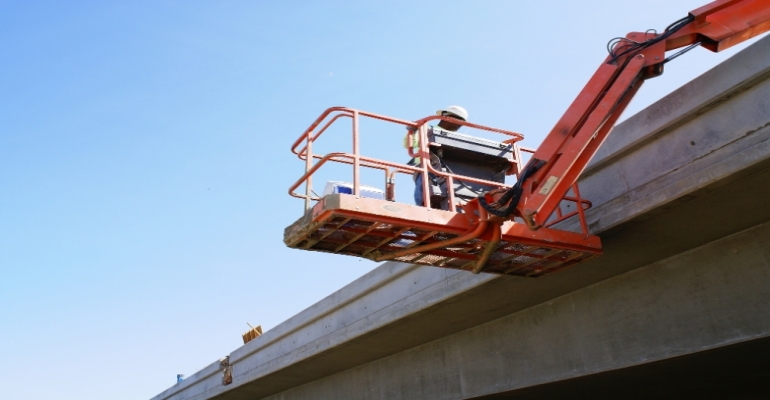

A manlift slew drive is an integral component of aerial work platforms or manlifts, which are used to lift personnel and equipment to elevated workspaces. These drives enable the rotational movement of the lift platform, providing workers with the flexibility to access various positions safely and efficiently. This guide delves into the details of manlift slew drives, discussing their components, functionality, selection criteria, installation, and maintenance.
What is a Manlift Slew Drive?
A manlift slew drive is a compact, enclosed unit that combines a high-strength slewing ring bearing with a drive mechanism, typically consisting of a motor and a gear system. This configuration allows the platform of the manlift to rotate horizontally, enhancing the maneuverability of the aerial platform.
Key Components of a Slew Drive
Slewing Ring Bearing: Supports the load and provides the structural base for rotational movement. It handles both axial and radial forces effectively.
Drive Gear: Commonly a worm gear, it engages with the slewing ring to facilitate controlled and smooth rotational movements.
Motor: Electric or hydraulic motors are used depending on the design and requirements of the manlift. The choice influences the drive's performance, control, and efficiency.
Housing and Seals: These components protect the drive from environmental elements and ensure that internal components remain operational in various weather conditions.
Operational Mechanics
In a manlift, the slew drive plays a critical role by enabling the platform to rotate around a vertical axis. When the motor is activated, it drives the worm gear, which in turn rotates the slewing ring bearing. This rotation allows the platform to move horizontally, providing workers with access to different areas without the need to reposition the entire machine.
Types of Manlift Slew Drives
While most manlift slew drives are similar in basic design, variations exist to accommodate different load capacities, rotational speeds, and environmental conditions. The specific type chosen often depends on the application's requirements, including the height of the lift, the weight capacity, and the desired precision of movement.
Selection Criteria of Manlift Slew Drives
Choosing the right manlift slew drive involves several important factors:
Load Capacity: It is crucial that the slew drive can support the combined weight of the platform, personnel, and any equipment or materials being lifted.
Rotational Speed and Precision: The drive should allow for smooth and controlled rotation, which is essential for the safety and efficiency of operations.
Durability: Look for drives that are built to withstand the operational demands and environmental conditions typical of construction or industrial sites.
Maintenance Requirements: Consider drives that are easy to maintain and come with accessible after-sales support and spare parts.
Compatibility: Ensure that the slew drive is compatible with the existing systems and controls of the manlift.
Installation Guidelines of Manlift Slew Drives
Proper installation is essential for the performance and safety of slew drives in manlifts:
Mounting Surface: The surface on which the slew drive is mounted must be robust and precisely aligned to avoid undue mechanical stress.
Alignment: Proper alignment is crucial to ensure efficient operation and to minimize wear and tear on mechanical components.
Electrical and Hydraulic Connections: Ensure that all connections are secure and properly sealed to prevent leaks and electrical failures.
Maintenance Practices
Regular maintenance ensures the reliability and longevity of the slew drive:
Lubrication: Regularly check and replenish lubricants to minimize friction and prevent premature wear.
Inspection: Perform routine inspections to detect and address signs of wear or damage to the gears, bearings, and seals.
Cleaning: Keep the slew drive clean from dirt, debris, and other contaminants that could affect its operation.
Manlift slew drives are crucial for the safe and efficient operation of aerial work platforms. Understanding the mechanics, proper selection, installation, and maintenance of these drives can significantly enhance the functionality and lifespan of manlifts. With the right slew drive, operators can achieve better positioning flexibility, which is essential for complex and high-elevation tasks.
