The difference between slew drive and slew bearing
Slew drives and slew bearings are critical components used in various mechanical and engineering applications, particularly where rotational or pivotal movement is required. These components are commonly found in heavy machinery such as cranes, wind turbines, and excavators, as well as in robotics and solar trackers. Understanding the differences between these two components is important for selecting the right type of equipment for specific applications.
What is the Slew Bearing?

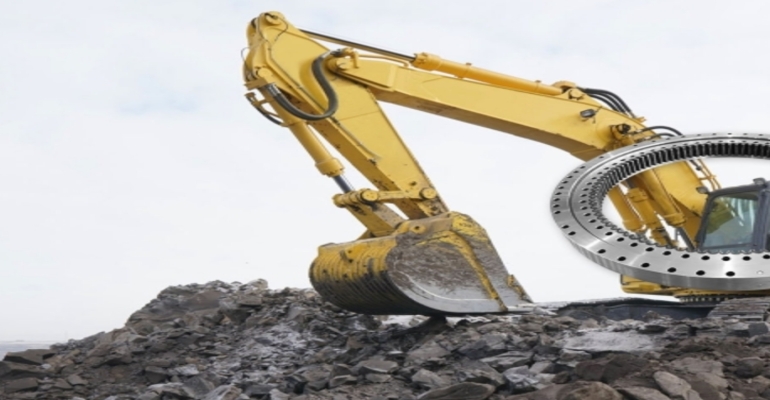

A slew bearing, also known as a slewing ring or turntable bearing, is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load. It facilitates the rotation of the structure while transmitting loads between the stationary and rotating parts.
Characteristics of the Slew Bearing
Structure: Slew bearings consist of an inner ring and an outer ring, one of which usually incorporates a gear. The rings are joined by rolling elements which are often ball bearings or cylindrical rollers.
Load Handling: These bearings are designed to handle axial, radial, and moment loads (tilting moments) simultaneously.
Applications: Used in machinery that requires both rotational and pivotal movement, such as cranes, rotating tables, wind turbines, and medical equipment.
Functionality of the Slew Bearing
Slew bearings do not typically include a drive mechanism within their design; they need an external force to initiate movement, such as a motor or manual force.
What is the Slew Drive?
A slew drive is an all-in-one unit that combines a slewing ring bearing with the added feature of a drive to initiate movement. This drive is usually a hydraulic or electric motor geared to provide high torque for rotational motion.
Characteristics of the slew drive
Structure: Includes a slewing bearing as its base component, integrated with a motor and gears within a housing. The gears are typically worm gears, which provide high gear ratios and self-locking capabilities.
Load Handling: Like slew bearings, slew drives can handle axial, radial, and moment loads. The drive mechanism enhances the ability to control movement under heavy loads.
Applications: Commonly used in applications that require precise control and significant power to move large structures, such as solar trackers, satellite dishes, and heavy-duty cranes.
Functionality of the slew drive
Slew drives provide both the bearing support and the rotational drive in a single compact assembly. They are particularly valuable in applications requiring robust control and heavy-duty operation with minimal space.
Key Differences of the slew bearings and slew drives
Drive Mechanism:
Slew Bearing: Requires an external force for rotation.
Slew Drive: Includes an integrated drive mechanism (motor and gears), providing autonomous rotation.
Complexity and Integration:
Slew Bearing: Simpler in design, primarily focused on bearing loads.
Slew Drive: More complex, integrating power, control, and support in one unit.
Application Specificity:
Slew Bearing: More versatile in application but requires separate systems for movement.
Slew Drive: Best suited for applications requiring integrated control and movement, especially where space and complexity are concerns.
Choosing between a slew bearing and a slew drive depends largely on the specific requirements of the application. If the need is solely for bearing loads with external movement control, a slew bearing is adequate. However, for applications requiring integrated movement control with high torque and precision, a slew drive is more appropriate. Each offers unique advantages and is tailored to meet different engineering and mechanical demands.
