Solar Track Slew Drive

What is a SV Slew Drive?

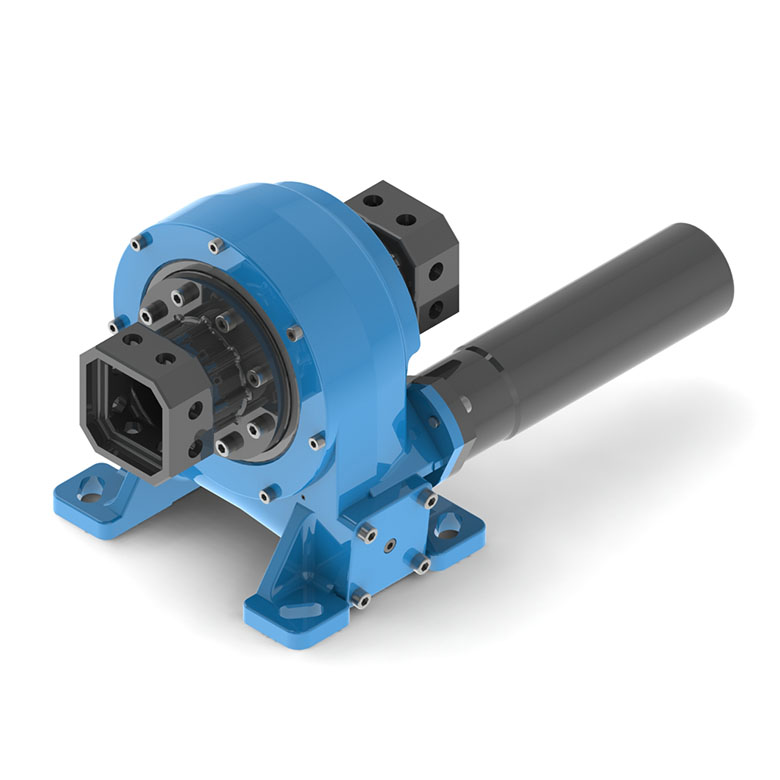

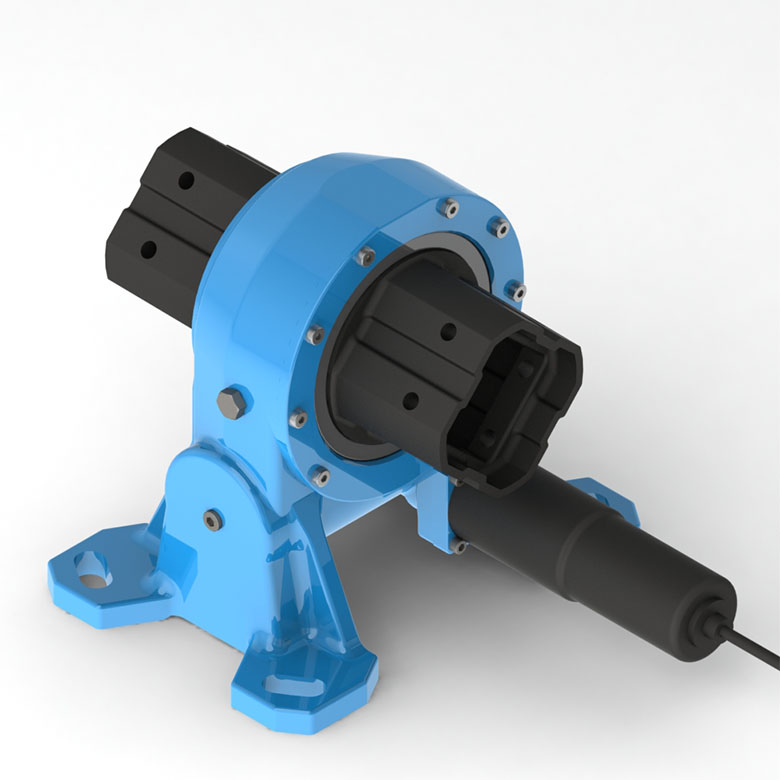

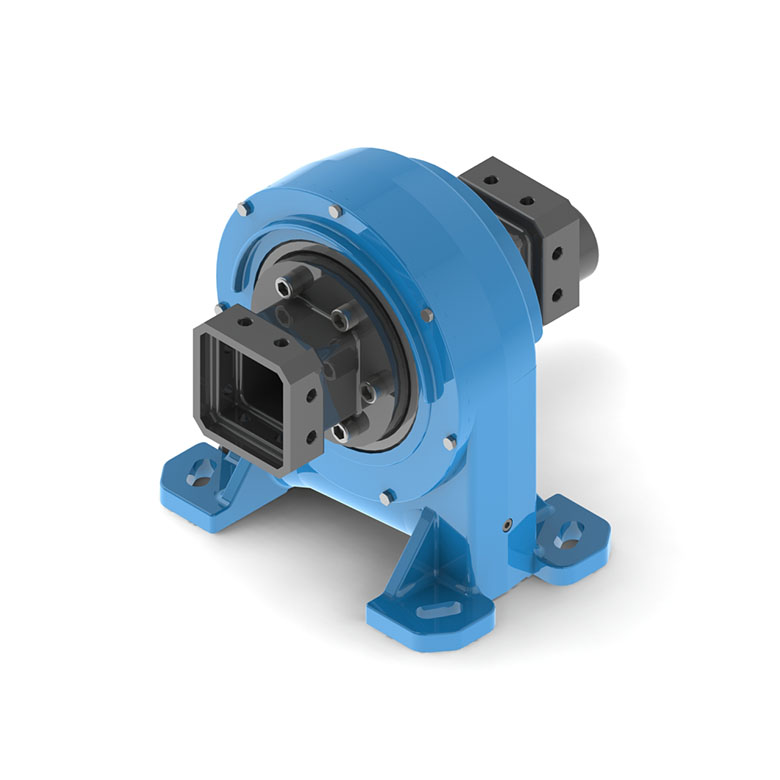

The SV Series slew drive isa high-performance rotational mechanism characterized by its specialized cage-type base and dual-framework oil seal design. Engineered to minimize maintenance frequency, this series is a highly integrated solution that can be mounted directly onto a customer's tracking system. Its design is specifically optimized to reduce the overall cost of tracking systems while simultaneously saving installation time and boosting operational efficiency.

Key Features of a SV Slew Drive

The SV Series is defined by its robust construction and advanced technical specifications:

Enhanced Sealing Performance: Equipped with a cage-style base and framework oil seal, these drives achieve an ingress protection rating of up to IP65, shielding internal components from harsh environmental factors.

Superior Corrosion Resistance: Utilizing specialized surface treatments, the SV series achieves a C4 corrosion resistance rating, making it suitable for high-humidity and industrial environments.

Mechanical Protection: An integrated mechanical hard-stop design provides a physical fail-safe to protect solar tracking systems during extreme weather conditions.

Versatile Output Interfaces: Output options are highly flexible, including square, hexagonal, octagonal, or circular flanges to match various structural requirements.

Power Adaptability: The drive can be driven by DC motors, AC motors, or external mechanical drive mechanisms.

Durability: The series is built for longevity, with a specialized design ensuring a service life exceeding 25 years.

Advantages of SV Slew Drives

The SV Series offers several distinct engineering and economic advantages over standard slewing solutions:

Optimized Space Utilization: Thanks to its side-mounted motor design, the SV series allows solar panels to be arranged in a completely flat configuration. This optimizes the utilization of the main beam while ensuring maximum structural stability.

Higher Gear Reduction: Unlike the VE series, the SV series employs a two-stage reduction design, which significantly increases the reduction ratio, allowing for much higher torque output and finer control.

Total Cost Reduction: By allowing direct mounting and simplifying the tracking system's overall architecture, it reduces hardware costs and labor-intensive installation processes.

Maintenance-Free Operation: The dual-framework oil seal design prevents lubricant leakage and contaminant entry, drastically reducing the need for periodic site maintenance.

How Does a SV Slew Drive Work?

The SV Series operates through a sophisticated two-stage reduction mechanism. When the side-mounted motor is activated, the first stage of reduction manages the initial speed and torque conversion, which then feeds into a second stage of gear reduction. This process exponentially increases the available output torque. The side-mounted configuration is key to its mechanical advantage, as it offsets the motor's weight and profile, allowing the driven load (such as solar beams) to sit flush and centered, ensuring balanced weight distribution during rotation.

Applications of SV Slew Drives

The high precision and robust wind resistance of the SV series make it ideal for:

Flat-Single Axis Solar Trackers: Specifically designed for systems where panels must remain in a low-profile, flat configuration to maximize space and stability.

Heavy-Duty Solar Arrays: Its two-stage reduction is perfect for driving massive arrays that require high holding torque against wind gusts.

Industrial Positioning: Used in automation where high reduction ratios and precise, slow-speed rotation are required for heavy materials handling.

Concentrated Photovoltaics (CPV): Where high tracking precision is essential for maximizing light absorption.

How to Install and Maintain a SV Slew Drive?

Installation:
The SV series is designed for rapid integration. Because it supports direct mounting, users can secure the drive to the tracking framework using the customizable mounting dimensions provided. It is critical to ensure that the side-mounted motor is properly supported and that the chosen flange (hexagonal, square, etc.) is perfectly aligned with the main beam to prevent axial stress.

Maintenance:
Maintenance requirements are minimal. The dual-framework oil seal keeps the high-pressure grease contained and prevents dust from grinding the gear teeth. Operators should perform a visual inspection annually to check the integrity of the seals and ensure the mechanical hard-stop remains free of obstructions. Due to its long-life design, internal lubrication often lasts for years without needing replenishment.

Price of a SV Slew Drive

The pricing for the SV Series varies based on several customization factors:

Reduction Ratio: Specific two-stage configurations required for high-torque applications.

Output Flange Type: Choosing between specialized hexagonal or octagonal flanges versus standard circular ones.

Motor Type: Integration with DC or AC motors and specific IP requirements for the drive unit.

Volume and Customization: Custom mounting dimensions and high-volume orders for large-scale solar farms will influence the final per-unit cost.

Supplier of SV Slew Drive: ZENITH-DRIVE

ZENITH-DRIVE is a professional manufacturer of SV Slew Drives. We specialize in the design and manufacture of slew ring bearings, precision bearings, and custom slew drives for construction, mining, marine, military, wind turbine, and medical industries.

By virtue of our expert team and advanced manufacturing technologies, ZENITH-DRIVE leads the way in R&D for slewing bearings. Our products are designed for lightweight efficiency, superior load-carrying capacity, and high versatility. With diameters ranging from 200mm to 10,000mm and accuracy covering P0, P6, and P5 classes, we provide the precision needed for mission-critical infrastructure. Furthermore, we offer certified bearings including CCS, ABS, BV, and GL, ensuring our SV series meets the highest international quality standards.
